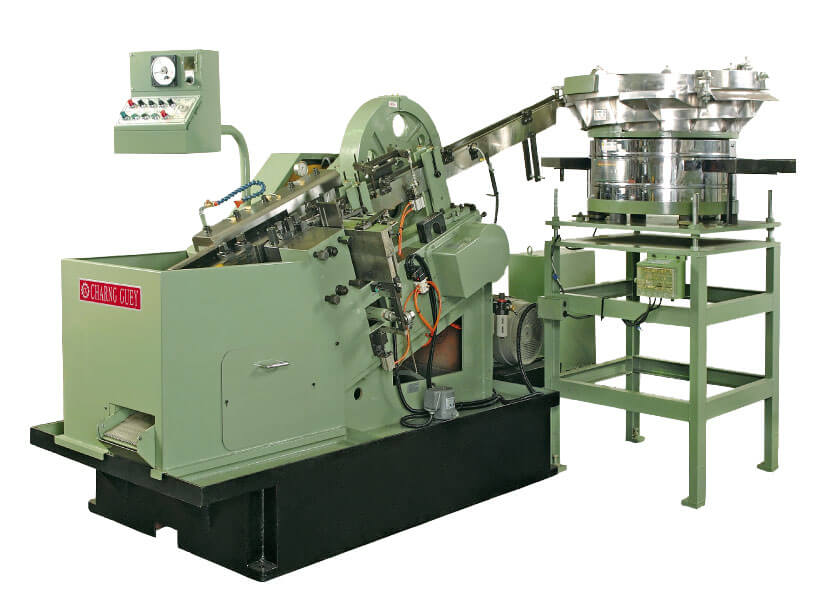

CGR-254A / CGR-304A / CGR-306A / CGR-406A
Automatic Thread Rolling Machine
-
Power pump automatic oil supply circuit, reduce the sliding plate wear down.
-
Adjusting the up-down device, it will be easy to fix the correct position between vibrator conveyer and guide rail.
SPECIFICATIONS
| Model | Blank Diameter (mm) |
Blank Length Max. (mm) |
Blank Thread Length Max. (mm) |
Motor (HP) |
Output (pcs./min) |
Dimension (mm)(L*W*H) |
Weight (kg) |
Thread Rolling Die Size (mm) |
| CGR-254A | 6-8 | 16-100 | 100 | 20 | 80/120 | 2300*1600*1450 | 2650 | 25*105*127/140 |
| CGR-304A | 8-10 | 20-100 | 100 | 30 | 60/90 | 2960*1700*1750 | 3800 | 25*105*150/165 |
| CGR-306A | 8-10 | 20-150 | 150 | 30 | 53/80 | 2960*1700*1750 | 3900 | 25*155*150/165 |
| CGR-308A | 8-10 | 20-200 | 150 | 30 | 50/75 | 3000*1850*1800 | 4200 | 25*210*150/165 |
| CGR-406A | 10-12 | 25-150 | 150 | 40 | 46/70 | 3200*2100*1750 | 5050 | 35*155*190/215 |
| CGR-408A | 10-12 | 25-200 | 150 | 40 | 43/65 | 3500*2100*1800 | 5400 | 35*210*190/215 |
We reserve the right to change the design & specifications without notice.
