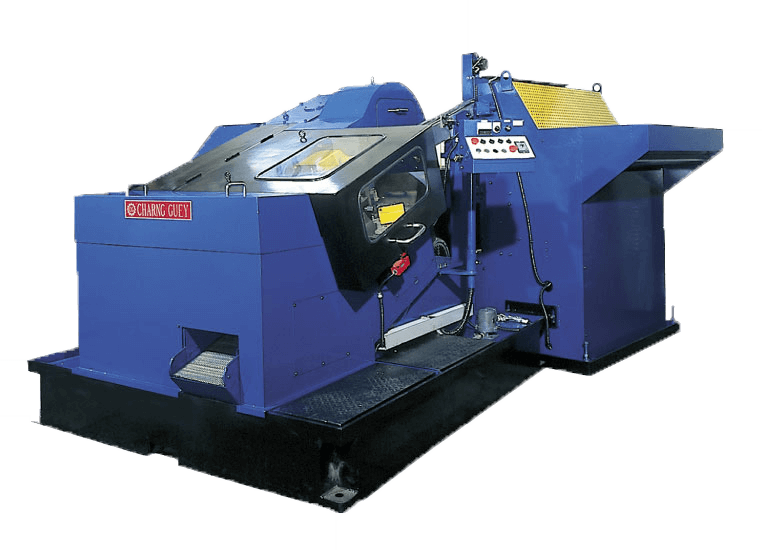

CGR-406H / CGR-606H
High Speed Automatic Thread Rolling Machine
-
Patent No.124107Automatic thread rolling machine feed mechanism
-
Patent No.125424Automatic thread rolling machine dies adjusting mechanism
SPECIFICATIONS
| Model | Blank Diameter (mm) |
Blank Length Max. (mm) |
Blank Thread Length Max. (mm) |
Motor (HP) |
Output (pcs./min) |
Dimension (mm)(L*W*H) |
Weight (kg) |
Thread Rolling Die Size (mm) |
| CGR-406H | 10-12 | 25-150 | 100 | 50 | 93/140 | 3500*2000*1910 | 6500 | 35*155*190/ 215 |
| CGR-407H | 10-12 | 25-180 | 120 | 50 | 80/120 | 3500*2000*1950 | 7000 | 35*180*190/ 215 |
| CGR-606H | 12-18 | 30-150 | 120 | 60 | 63/95 | 4200*2100*1980 | 9500 | 38*155*230/ 265 |
We reserve the right to change the design & specifications without notice.
